EG Steel Box-Up Letters in Malaysia

From RM 220.00. The price comes from the two numbers you enter above: the letter height and the overall width of the whole line of text. Taller letters cost more per metre of text, and a longer line costs more because it is simply more letters. You never have to count the letters yourself — the calculator does it, and the price updates as you type.

Letter height is the cap height of your tallest letter — a capital A measured top to bottom, not the height of the whole block of text. Overall width runs from the left edge of the first letter to the right edge of the last one, spaces included. The diagram above the size fields shows both. Two stacked lines are two order lines, one for each line. As a rule of thumb, 200–400mm letters suit a shopfront fascia read from across the road, and 80–150mm a reception wall.

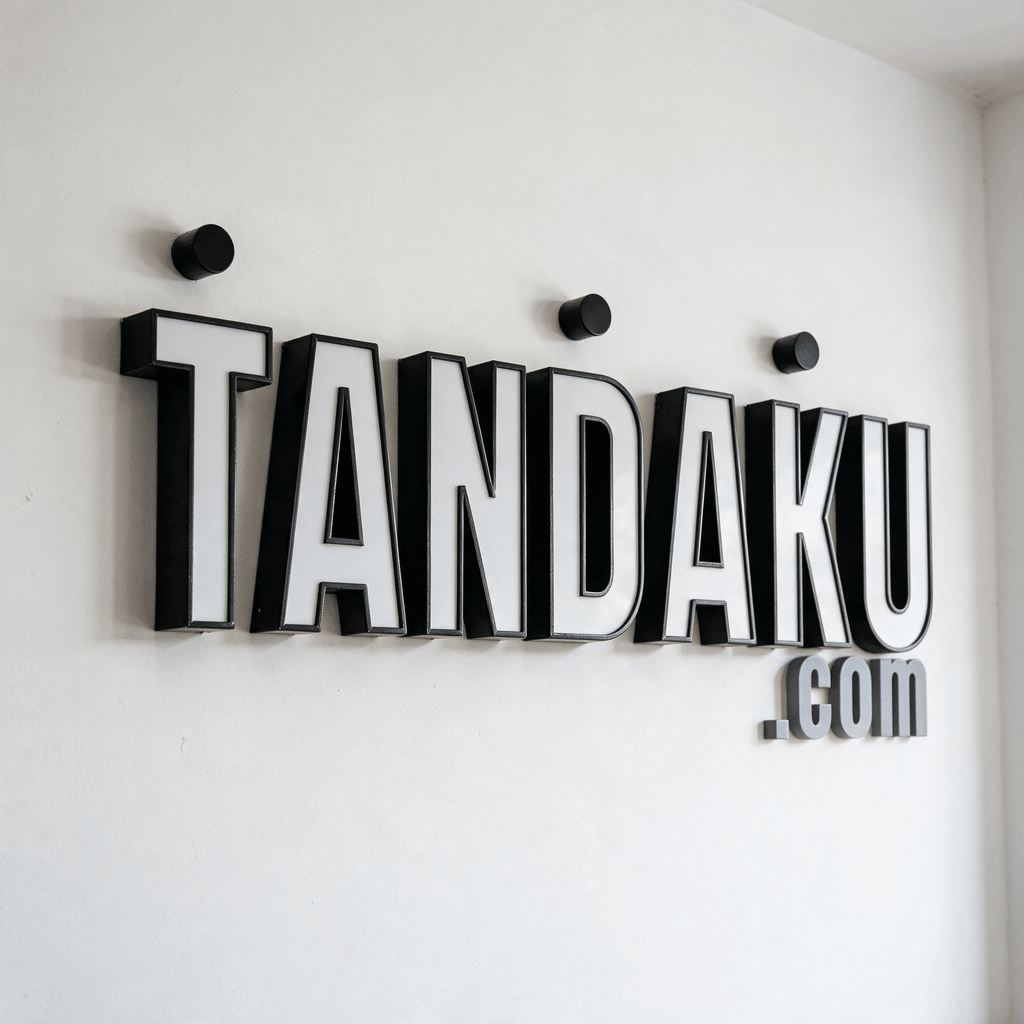

This is the front-lit range: an acrylic face that glows in your brand colour at night, inside a folded and welded EG steel box. It is the cheapest way into a properly lit shopfront letter and the workhorse of Malaysian fascia signage. The face is UV printed to your colour, or cut from a stocked 3mm acrylic — white, red, green, yellow, pink, grey or a translucent tint — either way at no extra cost. No black face, because a black face lets no light out. For a solid painted letter with a halo behind it instead, see our EG Steel Backlit Letters. Minimum letter height is 80mm.

As supplied, the sides and back are raw electro-galvanised steel — a mill white-grey finish, which is included and perfectly acceptable where the sides are barely seen, such as a letter sitting tight against a dark fascia. For anything else take the 2K spray option: every steel surface sprayed in your Pantone or RAL and clear-coated — on a front-lit letter that means the sides and the back, since the face itself is acrylic. Outdoors this is not really a styling choice — paint is what keeps galvanised steel weatherproof over the long run, and it is the single biggest factor in whether the letter still looks right in five years.

Yes, and it is not optional — the Add to cart button stays locked until you pick one. The modules run on 12V DC, so every lit order has to include an AC–DC driver: 100W or 300W, indoor or rainproof. Wiring the LEDs straight into 240V mains destroys them the moment you switch on, and that is not covered by warranty. Take the rainproof driver for anything outdoors, and mount it somewhere your electrician can still reach in two years.

Yes. On-site installation in KL and Selangor is one charge per job — one visit fixes every letter in your order, whether it is 3 letters or 30 — starting at RM350 for a ground-floor wall or fascia and stepping up floor by floor, because the higher the sign goes the more access equipment the job needs; above the 5th floor we quote after a site survey, since that means a boom lift or a gondola and a permit from the building. Ordering two lines of text or several letter products? Still one visit and one charge — at the highest floor among them. Doing it yourself instead? Add the full-size paper template — tape it up, mark the holes through it, and every letter lands level and evenly spaced first time.
